1.Product construction:

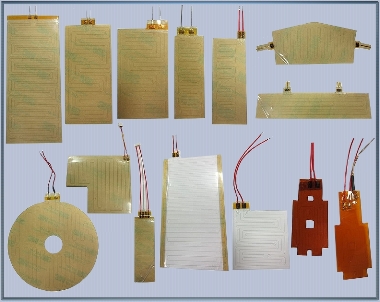

Fine wire type heater, we are using fine alloy wire to lay a designed pattern on PET film.
It can get very good result on ohm resistance and reliable heat on heater surface.
Front side, to avoid the PET films scratch problem, we have laminated with protective
masking film. Customer can peel it off after installation.
Back side laminated with optical grade adhesive, which we can easy install this
flat heater on LCD glass.

2.Operation:

Applying power to connector, then the flat heater will generate an uniform heat on the surface.Our proposed, the maximum wattage is 2.55 Watt/inch sq.

3.Features:

●　Flexible
●　Flat film structure.
●　Back side with optical grade adhesive ,we can easy installation.
●　Light transmission:>80%

4.Working environment

● Storage temperature: -40℃ - 100℃
● Working temperature: -40℃ - 100℃
● Humidity :5%-95%

We can design and produce customer's requirement heater, based on customer's input voltage, size ,power wattage density and working temperature requirement.

We also can supply the accuracy sample for testing purpose in advance.
